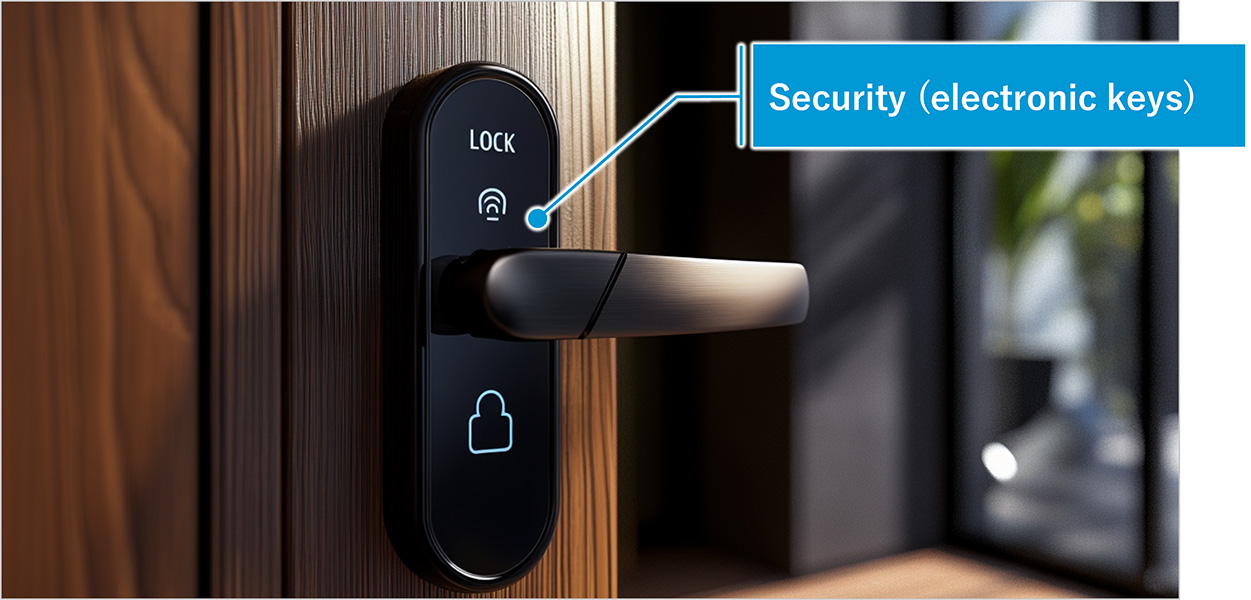

The small size and ability to operate at low voltage make it suitable for use in security doors (Electronic key).
We offer models that can operate with a minimum of 1.0V, enabling small devices to function even with contactless power supply.
Due to its small size, it can be installed in limited spaces such as door knobs.
The ability to start at low voltage extends the battery life.
It is used for unlocking and locking operations.
|
Model Name | Outer Diameter [mm] |
Length [mm] |
Applied Voltage [V] |
Terminal resistance [Ω] |
No Load | Startup | Max | Product Details ▶ | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rotation Speed [r/m] | Current [mA] | Current [mA] | Torque [mN･m] | Efficiency [%] | Output [W] | ||||||||
| A4-102-01 | 4 | 10.2 | 1.0 | - | 16750 | 14.2 | 42 | 0.0103 | 17.3 | 0.00453 | |||
| Customizable Items | Lead wire Lead pin | ||||||||||||
|
Model Name | Outer Diameter [mm] |
Length [mm] |
Applied Voltage [V] |
Terminal resistance [Ω] |
No Load | Startup | Max | Product Details ▶ | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rotation Speed [r/m] | Current [mA] | Current [mA] | Torque [mN･m] | Efficiency [%] | Output [W] | ||||||||
| A16-192-01 | 16 | 19.2 | 5.0 | - | 4900 | 9 | 230 | 2.07 | 64.4 | 0.266 | |||
| Customizable Items | Lead pin Lead wire Grounding terminal Gear head | ||||||||||||
